Every Open Lands in SendGrid. Your Reps Live in Salesforce.

What actually maps to what

SendGrid's marketing model is thin: Marketing Contacts, Lists, Segments, and that is close to all of it. Salesforce has Leads, Contacts, Person Accounts, Campaigns and Campaign Members. The mapping is many-to-few, so decide the collapse rules before you move a record.

Why email alone is not a good enough key

SendGrid keys Marketing Contacts on email. That works until somebody corrects a typo in a Salesforce address: the next upsert creates a second SendGrid contact while the original keeps the engagement history and the list memberships. Put the Salesforce 18-character Id in a custom field called external_id, match on that first, and fall back to email only for contacts that predate the sync.

Custom fields are referenced by ID, not by name

Any Salesforce field you want available for segmentation has to exist first as a SendGrid custom field definition. Create it once through /v3/marketing/field_definitions, store the returned field ID in your mapping config, and use that ID in every contact payload. Renaming the field in the SendGrid UI later breaks nothing, because the ID is what the API reads. Hard-coding the display name does break, usually mid-send.

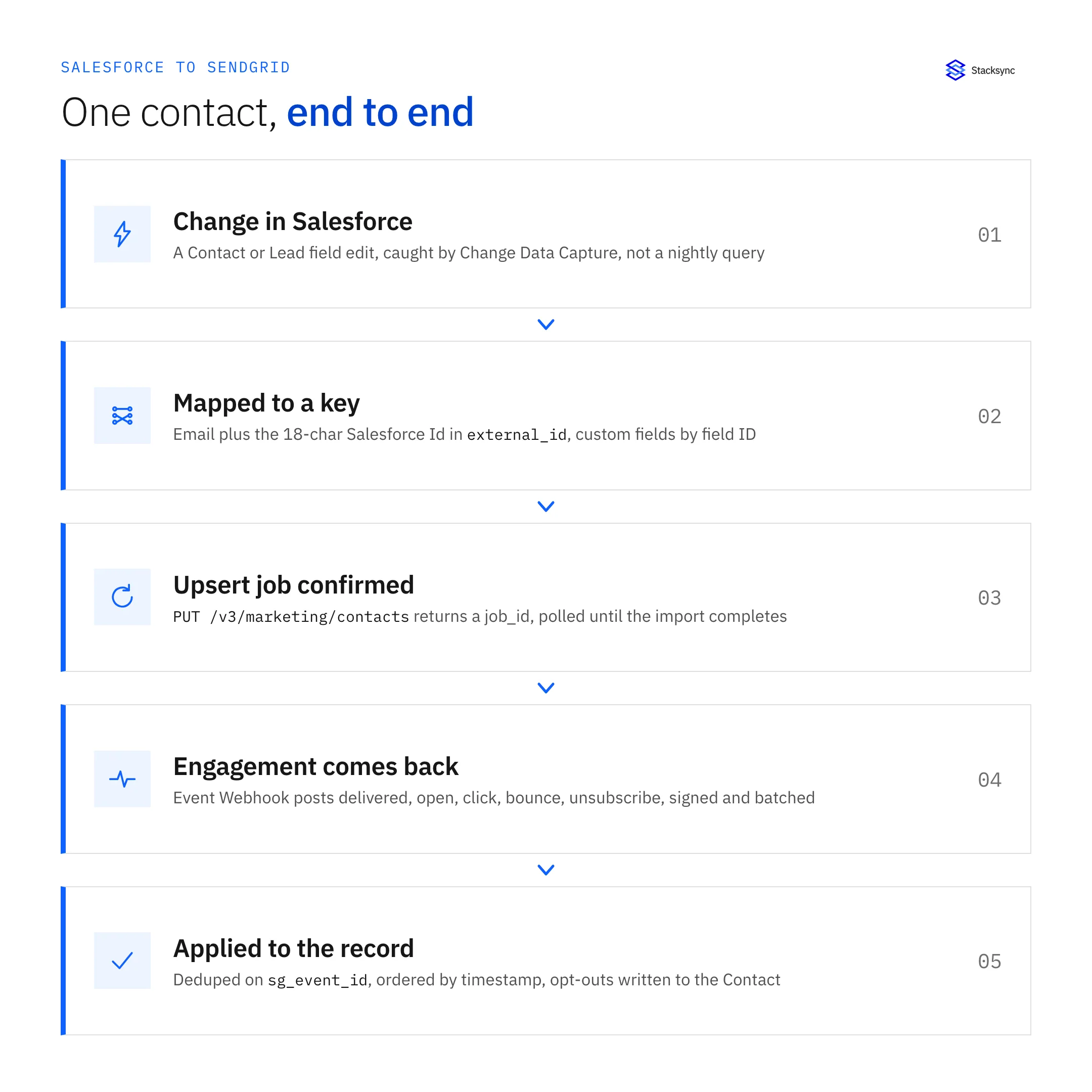

The outbound leg: Salesforce to SendGrid contacts

Pushing contacts out is where integrations quietly go wrong, because the SendGrid write model is asynchronous. PUT /v3/marketing/contacts accepts up to 30,000 contacts or 6 MB per request and returns a job_id. The 202 means the payload was accepted, not that a contact exists. Poll /v3/marketing/contacts/imports/{id} until the job reports completed, then read the error count it returns.

That gap produces the classic bug: a workflow marks the Salesforce record as synced the instant the API returns, the import later fails on a malformed address or a reserved field name, and nothing reconciles it. Treat the job as the unit of work. Store the job_id, mark records confirmed only when the import completes, and requeue whatever the job reports as failed.

The other half of the outbound design is the trigger. Polling for LastModifiedDate > T works, and spends API calls whether anything changed or not: a five-minute poll costs 288 queries per object on a quiet Sunday. Change Data Capture and Platform Events push the change to you instead, so the SendGrid contact updates seconds after the rep hits save and request volume tracks real edits rather than table size.

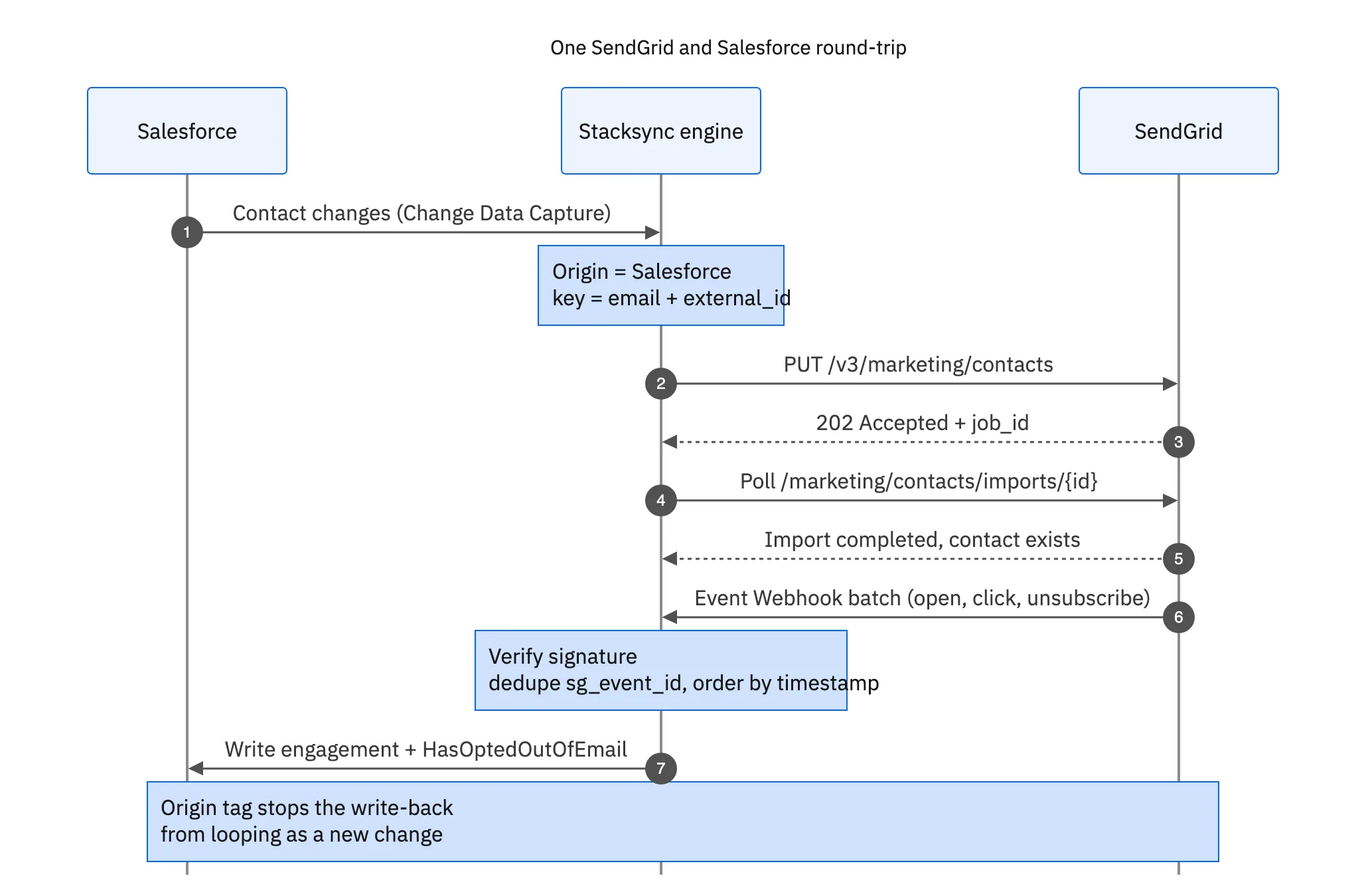

The inbound leg: SendGrid events into Salesforce

Delivery truth only ever arrives on the Event Webhook. A 202 from /v3/mail/send means queued. Whether the message was delivered, opened, clicked, bounced, dropped or reported as spam turns up later as a POST to your endpoint carrying a JSON array of events.

Four properties of that feed decide how the consumer is built. Events are at-least-once, out of order, batched and retried: the same event can arrive twice, a click can land before the delivered event for the same message, one request can carry hundreds of events, and an endpoint that returns a 500 gets the whole batch again.

• Dedupe on sg_event_id. Every event carries a unique id. Store it and drop anything already applied, or one retried batch double-counts every open in your reporting.
• Order on timestamp. Never trust arrival order. Compare against the last timestamp stored for that message before overwriting a status, or a late processed event clobbers a delivered one.
• Verify the signature. With Signed Event Webhook enabled, each request carries X-Twilio-Email-Event-Webhook-Signature and a timestamp header, signed with an ECDSA key. Verify against the public key from your SendGrid account before writing anything, and reject requests whose timestamp is older than a few minutes.
• Return 2xx fast, process later. Acknowledge the batch, queue it, then write to Salesforce. Doing the Salesforce writes inline is how you end up with SendGrid retrying because your endpoint timed out, which multiplies the load you were already behind on.

Where the events should land in Salesforce

This is the decision teams regret most often: cheap to change on a whiteboard, expensive after six months of data. Three usual destinations.

Storage in Salesforce is not free and neither is the API allocation, so set the retention policy before you open the firehose. If the raw volume does not belong in the CRM, land it somewhere built for it and keep only the rollups in Salesforce. Both SendGrid with Snowflake and SendGrid with PostgreSQL are live pairings.

The Salesforce limits that bite

Salesforce enforces a daily API request allocation per org, sized from your edition and licence count, and an engagement feed will eat it. Send a hundred thousand emails, get a processed, a delivered and an open event for most of them, and a one-call-per-event consumer is a quarter of a million API calls against a budget that also has to run the rest of the business.

Three habits keep it inside budget. Batch before writing, so one composite or Bulk API 2.0 request carries hundreds of records instead of one. Split the paths: Bulk API for engagement volume, REST for the low-latency contact updates a rep is waiting on. And filter at the source, because SendGrid lets you choose which event types the webhook posts. If nobody reports on processed, do not receive it.

Outbound, the same arithmetic favours field-level two-way sync over scheduled batch jobs: moving only what changed costs a fraction of what a nightly full export burns re-reading records nobody touched.

The suppression loop is compliance, not tidiness

An unsubscribe recorded in SendGrid has to reach the Salesforce HasOptedOutOfEmail field, and an opt-out a rep sets in Salesforce has to reach SendGrid's suppression list. Miss either direction and you will send to somebody who opted out, which is a CAN-SPAM and GDPR problem, not a data-quality one.

SendGrid keeps suppressions on several surfaces and they are not interchangeable. Global unsubscribes live at /v3/asm/suppressions/global. Unsubscribe groups (/v3/asm/groups) are per topic, so a contact can leave the newsletter and keep billing notices. Bounces (/v3/suppression/bounces), blocks, spam reports and invalid addresses are separate lists again. Decide which set the Salesforce opt-out flag: a spam report should, a soft bounce should not, an invalid address belongs on a data-quality field.

The direction that gets skipped is Salesforce to SendGrid. A rep ticks Email Opt Out after a phone call, nothing propagates, and the contact stays in a SendGrid list until the next campaign goes out. Two-way sync on that one field is the cheapest control in the whole integration, and the first thing to test.

Error handling that survives a bad afternoon

SendGrid rate limits per endpoint, and the Marketing Contacts endpoints are much tighter than Mail Send. A 429 comes back with X-RateLimit-Reset, the epoch second at which the window resets. Read it, wait, retry, with exponential backoff and jitter on top so several workers that hit the wall together do not all resume at the same instant.

Assume the webhook endpoint will be unreachable at some point. SendGrid retries failed deliveries on its own schedule, which covers a short outage but is not an unlimited buffer. That is the real reason to acknowledge fast and process from a queue you own: your queue can be replayed and inspected, somebody else's retry policy can only be waited on. After a long outage, backfill contact state and accept that dropped engagement events are gone.

One more thing to know before designing any of this: SendGrid has no change feed for Marketing Contacts. No endpoint returns every contact modified since a timestamp. Your options are an asynchronous export (/v3/marketing/contacts/exports, another job to poll) or driving every contact change from Salesforce. Most teams pick the second and let SendGrid own only engagement and suppression state.

Standing it up on Stacksync

In order, here is what standing it up looks like. None of these steps is a code change.

• 01Connect both systems. Salesforce over OAuth, SendGrid with an API key scoped to Marketing and Suppressions. Nothing pasted into a script, no credentials in a repo.
• 02Create the external_id field in SendGrid. One call to /v3/marketing/field_definitions, then map the Salesforce 18-character Id into it so the match key survives an email change.
• 03Map objects and fields. Contact and Lead to Marketing Contact, Campaign to List, Campaign Member to list membership, plus the custom fields your segments actually use.
• 04Point the Event Webhook at the sync. Enable Signed Event Webhook, choose the event types you will act on, and pick where they land: a custom engagement object, rollup fields on the Contact, or both.
• 05Turn on the suppression loop. HasOptedOutOfEmail in both directions, plus an explicit rule for which SendGrid suppression types set it.
• 06Backfill, then go live. Run the initial load, read the import job errors instead of assuming there are none, then switch to real time and watch the first day of engagement land.

Adding a third system later is another short configuration on the same engine rather than a second integration to maintain, which is the point of a platform with 1,000+ connectors rather than a point-to-point script.

Get both sides telling the same story

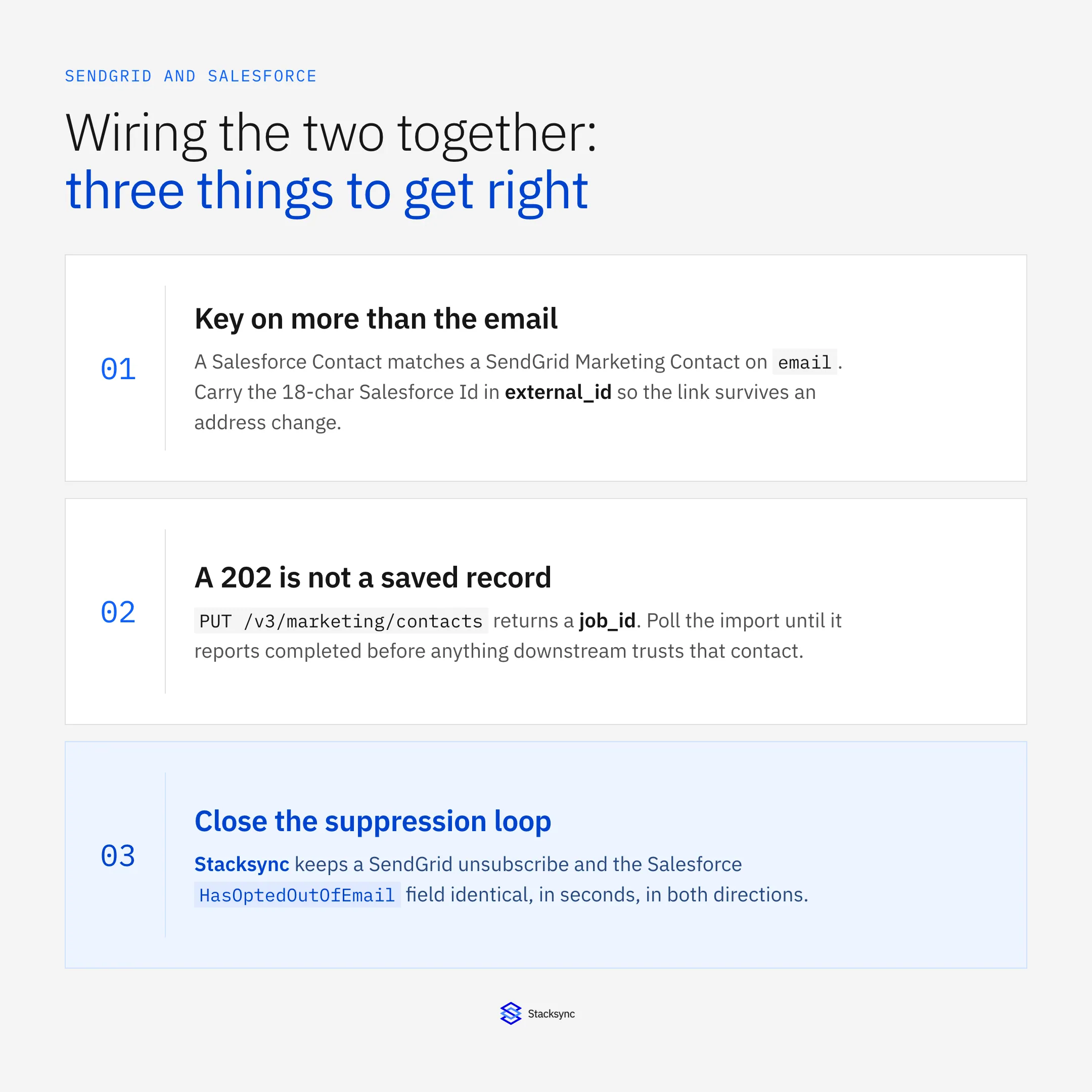

A SendGrid and Salesforce sync is not hard, it is detailed. Key on something stable, respect the asynchronous import job, treat the Event Webhook as the at-least-once out-of-order feed it is, keep suppressions honest both ways, and stay inside the API budget. Get those five right and a rep finally sees what the contact did with the last email.

To see it running both ways on real data, book a demo, look at the Salesforce and SendGrid integration, or read the broader guide to an enterprise-grade iPaaS for SendGrid.
