Aurora PostgreSQL and Salesforce in Both Directions, Step by Step

Why Aurora and Salesforce end up disagreeing

They disagree because both are systems of record, for different halves of the same customer. Aurora owns the product: entitlements, usage counters, provisioning state, the rows an application writes on every request. Salesforce owns the commercial record: the account, the opportunity, the renewal date, the field a rep edits on a call. The trouble starts with the handful of values that are editable on both sides, which is almost always seat count, plan tier and status.

A one-way pipe hides the problem rather than solving it. A nightly load from Aurora into Salesforce works until a rep changes the seat count there and the application never hears about it. Someone then writes a second job going the other way, and now there are two jobs with no shared idea of which write happened last. That is where a job becomes a sync engine.

Aurora adds a wrinkle a single-instance PostgreSQL server does not have: the cluster is not one machine. Compute and storage are separate, and the volume is a distributed service shared by every instance, which is the design the Aurora origin story unpacks. For an integration that means several endpoints doing different jobs, and only one of them may hold your replication slot.

Setting up the Aurora side, in order

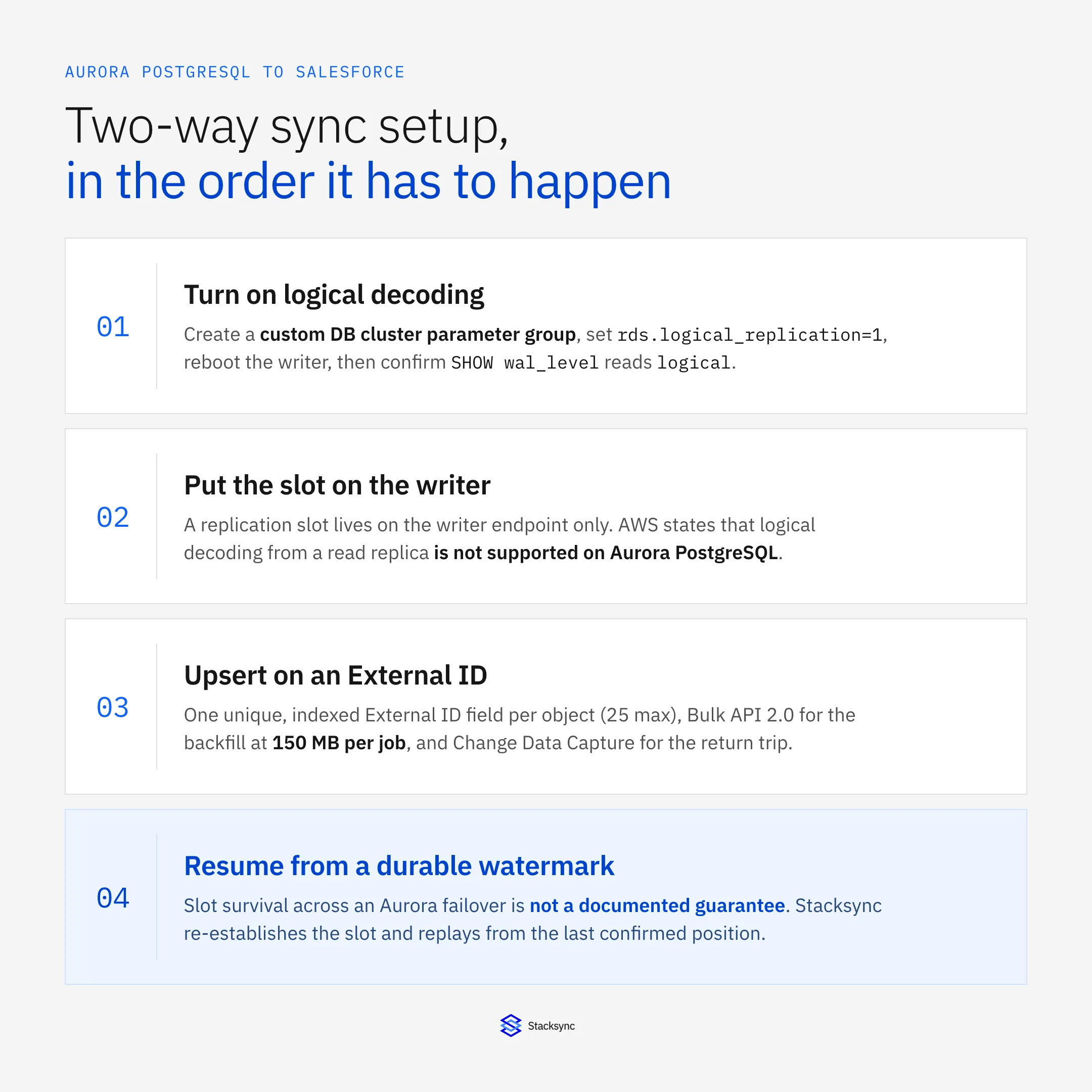

Five things, and the sequence matters because one of them needs a reboot of the writer. Create a custom DB cluster parameter group, set rds.logical_replication to 1, reboot the writer, create the role and publication, then create the slot. Everything after that is Salesforce work.

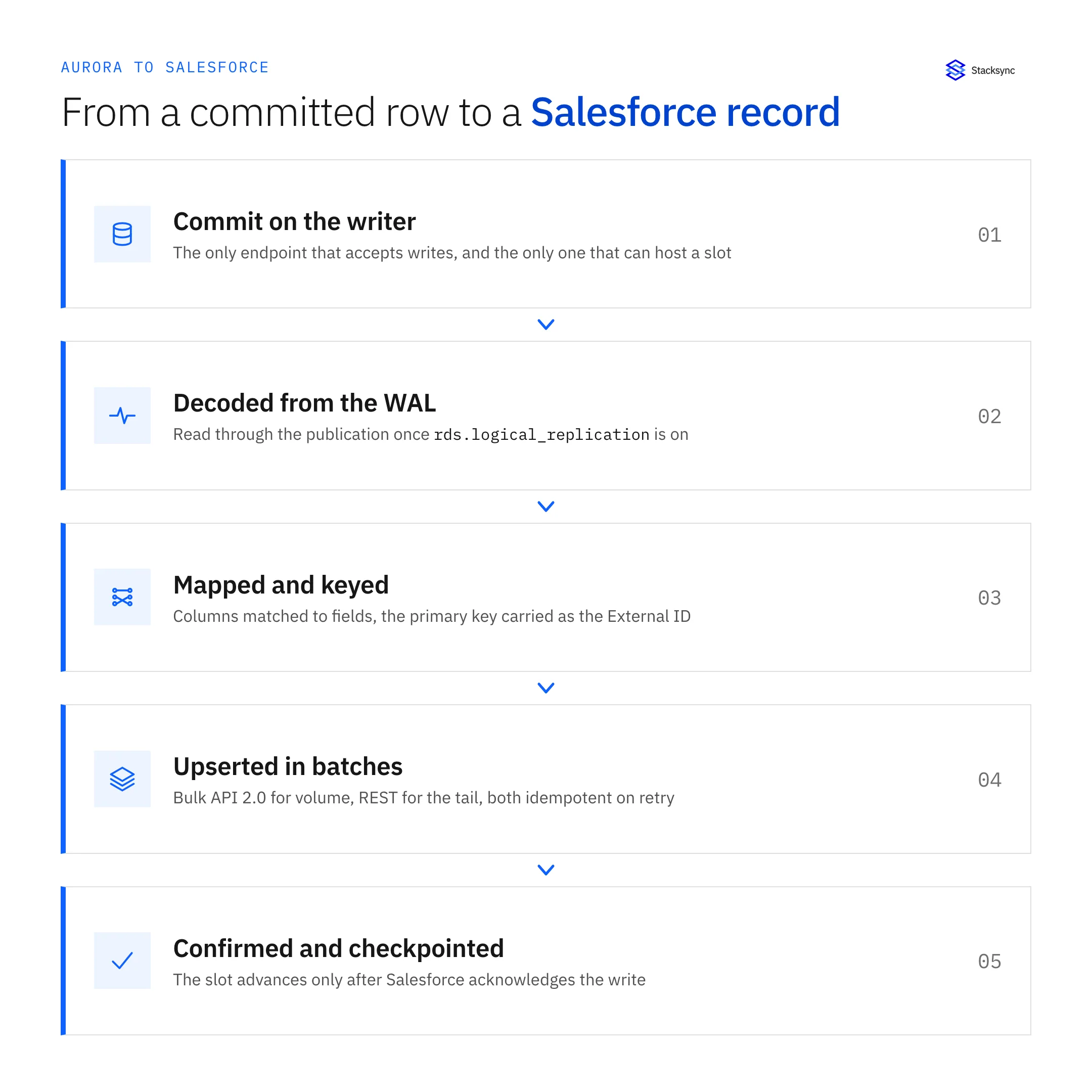

Here is where those steps sit in the path a committed row takes on its way to becoming a Salesforce record.

Turn on logical decoding

rds.logical_replication is a DB cluster parameter, not an instance parameter, and it defaults to 0. Default parameter groups cannot be edited, so the first real step is creating a custom DB cluster parameter group and associating it with the cluster. Set the value to 1, reboot the writer instance, then confirm the result rather than assuming it. You never set wal_level yourself on Aurora, you set the flag and let the engine derive it.

Two things to budget for. Enabling the flag increases WAL generation even if you never create a slot, which shows up on the billed VolumeWriteIOPS metric. And since Aurora PostgreSQL 14.5, 13.8, 12.12 and 11.17, a write-through WAL cache reduces disk reads during logical decoding, on by default whenever logical replication is in use.

Put the slot on the writer, and only the writer

The replication slot lives on the publisher, and on an Aurora cluster the publisher is the writer instance. Readers cannot host one. AWS states it directly: PostgreSQL 16 added support for logical decoding from read replicas, and that feature is not supported on Aurora PostgreSQL. So the change-capture connection uses the cluster writer endpoint. The reader endpoint is wrong for a second reason too, since it balances connections rather than queries, randomly through DNS.

-- run on the CLUSTER WRITER endpoint, after the reboot
SHOW wal_level;                     -- must return: logical

CREATE ROLE stacksync WITH LOGIN REPLICATION PASSWORD '...';
GRANT SELECT ON ALL TABLES IN SCHEMA public TO stacksync;

CREATE PUBLICATION stacksync_pub
  FOR TABLE public.accounts, public.subscriptions, public.usage_daily;

-- the query that belongs on a dashboard from day one
SELECT slot_name, active, restart_lsn,
       pg_size_pretty(pg_wal_lsn_diff(pg_current_wal_lsn(), restart_lsn)) AS retained
FROM pg_replication_slots;

Size the connections before you need to

Aurora derives the default connection ceiling from instance memory with LEAST({DBInstanceClassMemory/9531392}, 5000), capped at 5,000. AWS gives db.r4.large at 15.25 GiB as roughly 1,717 connections. Size the sync pool against that number rather than a guess. On Aurora Serverless v2 the value comes from the maximum ACU, so connections are not dropped when the cluster scales down.

RDS Proxy is worth considering, because it can cut failover time by up to 66% by routing to the new instance instead of waiting on DNS. It has one behaviour that catches integrations out: creating a temporary table pins a connection to its session and removes it from the pool, so a staging temp table in a batch job is the usual culprit. Prepared statements no longer force pinning on PostgreSQL targets.

Setting up the Salesforce side: External IDs, Bulk API 2.0 and CDC

Three pieces, in this order: an External ID field so writes are idempotent, Bulk API 2.0 for the backfill, and Change Data Capture for the return direction. The External ID is the one people skip and then regret, because without it every retry is a potential duplicate record.

An External ID is a custom field flagged as External ID, marked unique and indexed. Put the Aurora primary key in it, one per object you sync. Salesforce allows up to 25 per object, so the count is not the constraint, uniqueness is: an upsert that matches more than one record raises a DMLException rather than picking a winner. Populate the field before you upsert on it, and reconcile duplicates during that load.

For the initial load, Bulk API 2.0 batches for you rather than making you cut 10,000-record batches by hand the way v1 did. The ceilings that matter are 150 MB per job, 15,000 batches per rolling 24 hours shared across Bulk API and Bulk API 2.0, and 150,000,000 records per rolling 24 hours. A few million rows fits comfortably. A few hundred million needs planning across days.

Steady-state traffic comes out of a different bucket. The 24-hour API request allocation is shared across REST, SOAP, Bulk, Bulk 2.0 and Connect REST: 100,000 plus 1,000 per licence on Enterprise and Professional, 100,000 plus 5,000 per licence on Unlimited and Performance, a flat 15,000 on Developer, and 5,000,000 on a Full Sandbox. Sizing a sync against that number is worked through in the guide to Salesforce API limits in a Postgres sync.

Change Data Capture is where the return direction lives

For Salesforce to Aurora you want events, not polling. Change Data Capture publishes create, update, delete and undelete events for selected objects, and a consumer reads them with a stored replay ID. Two limits shape the design more than anything else here: events are retained on the event bus for 72 hours, and without the Change Data Capture add-on licence an org can enable CDC on a maximum of five objects.

The five-object cap is what decides your scope. Account, Contact, Opportunity and two custom objects, and you are done. Beyond that you either buy the add-on, which also adds 100,000 events per day, or fall back to a query-based sweep for the rest. The 72-hour window matters separately: an integration offline for longer than three days cannot resume from its replay ID and has to reconcile by querying instead. Delivery allocations before add-ons run from 10,000 events per rolling 24 hours on Developer to 50,000 on Unlimited, with a 1 MB maximum message size.

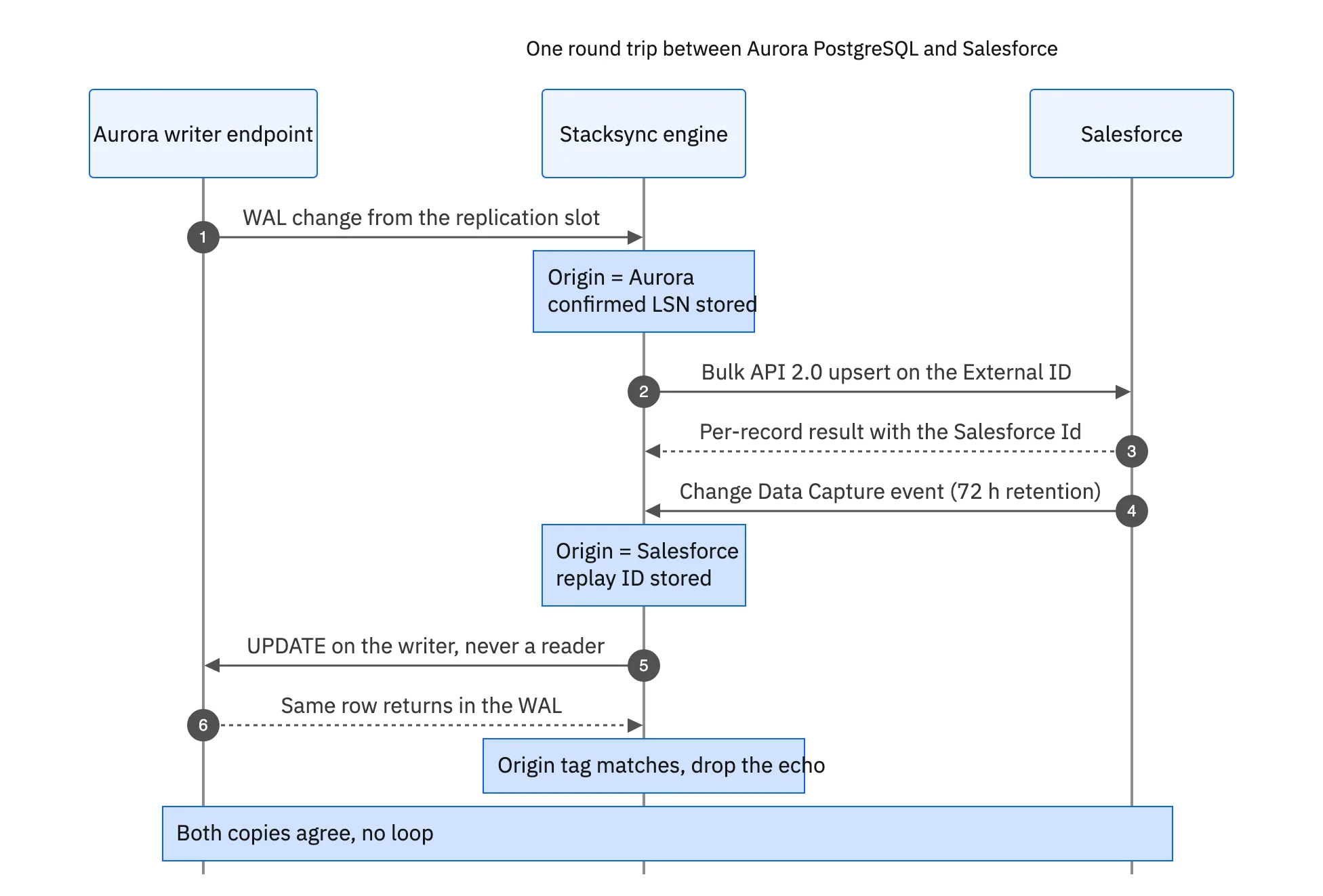

One round trip, and how the echo gets dropped

The mechanism that makes a two-way sync stable is origin tagging. Every write the engine makes carries the system it came from, so when that write reappears a moment later in the Aurora WAL or on the Salesforce event bus it is recognised as an echo and dropped rather than replayed.

Two checkpoints carry the whole thing. On the Aurora side it is the confirmed LSN, and the slot advances past a change only once Salesforce has acknowledged the write. On the Salesforce side it is the replay ID. Both have to be durable, because both are what a restart resumes from, and on Aurora a restart is not a rare event.

When the same field moves on both sides inside the same window, something has to decide. Last writer wins is the common default and a poor one, because the outcome then depends on which job ran last. Field-level precedence is better, and it is mostly a conversation rather than an engineering problem: Aurora owns usage and provisioning state, Salesforce owns the commercial fields, and once every synced field has one named owner most collisions stop happening.

Operating it: monitoring, failover, Blue/Green and upgrades

Four CloudWatch metrics and three cluster events. Watch OldestReplicationSlotLag, ReplicationSlotDiskUsage, FreeStorageSpace and TransactionLogsDiskUsage, and treat a stalled consumer as a database incident rather than an integration one.

The reason is that an inactive slot retains WAL. It blocks removal of old logs, which AWS notes can eventually lead to insufficient storage, and it blocks autovacuum from cleaning the catalog tables. A sync paused over a weekend is therefore not a backlog to clear on Monday, it is a cluster running low on volume. Alert on retained WAL size, not only on whether the process is up.

What a failover actually does

On failover the cluster endpoint keeps its DNS name and repoints to the promoted instance. Aurora DNS zones use a 5-second TTL, failover is typically restored in under 60 seconds and often under 30, and AWS names DNS propagation as the largest contributor, recommending client DNS TTL caching below 30 seconds. Your client library DNS cache settings are part of your recovery time whether you tuned them or not.

What is not documented is slot survival. AWS documents failover slots for classic RDS primary and read-replica topologies, not for Aurora clusters, so do not assume the slot comes through. Design for re-establishing it on the new writer and resuming from a durable watermark, which is only safe if every Salesforce write is idempotent. That is exactly what the External ID upsert buys you.

Blue/Green switchovers and major version upgrades

Two planned events will also take your slot away. A Blue/Green deployment needs a replication slot of its own for the green environment, and the documented AWS guidance is to drop your self-managed slots and subscriptions before the switchover and recreate them afterwards. A major version upgrade goes further: Aurora requires that all logical replication slots be dropped, including inactive ones, before it will proceed.

Neither is a problem if the sync resumes from a watermark and writes idempotently. Both are an outage if the design assumed a slot that lives forever.
