eClinicalWorks FHIR API Integration Guide

How the eClinicalWorks FHIR API is structured

The eClinicalWorks API follows the HL7 FHIR R4 specification, so if you have worked with any Cures Act certified EHR the shape will feel familiar. Data is organized into resources, each addressable at a REST endpoint under a base FHIR service URL. You request a resource by ID or run a search with query parameters, and the server returns JSON (FHIR also supports XML).

The resources you will use most for clinical and operational integrations include:

• Patient for demographics, identifiers, and contact details.
• Encounter for visits and their status, type, and timing.
• Observation for labs, vitals, and other measured results.
• Condition for problems and diagnoses.
• MedicationRequest and Medication for prescriptions and drug references.
• AllergyIntolerance for documented allergies and reactions.
• DocumentReference for clinical documents and attachments.

eClinicalWorks publishes the US Core profiles required for certification, which constrain how these resources are populated so that a field like a patient identifier or a LOINC-coded observation is predictable across vendors. In practice you should still read the vendor's own FHIR capability statement (the /metadata endpoint) to confirm which resources, search parameters, and versions a given practice's instance supports, because deployments vary from site to site.

FHIR resources also reference each other. An Observation points at a Patient and often an Encounter; a MedicationRequest points at both a patient and a prescriber. To assemble a usable record you resolve those references, which means extra calls or careful batching, and you decide how to represent the relationships in a schema that was probably designed long before anyone at your company had heard of FHIR.

Authentication: app registration and SMART on FHIR

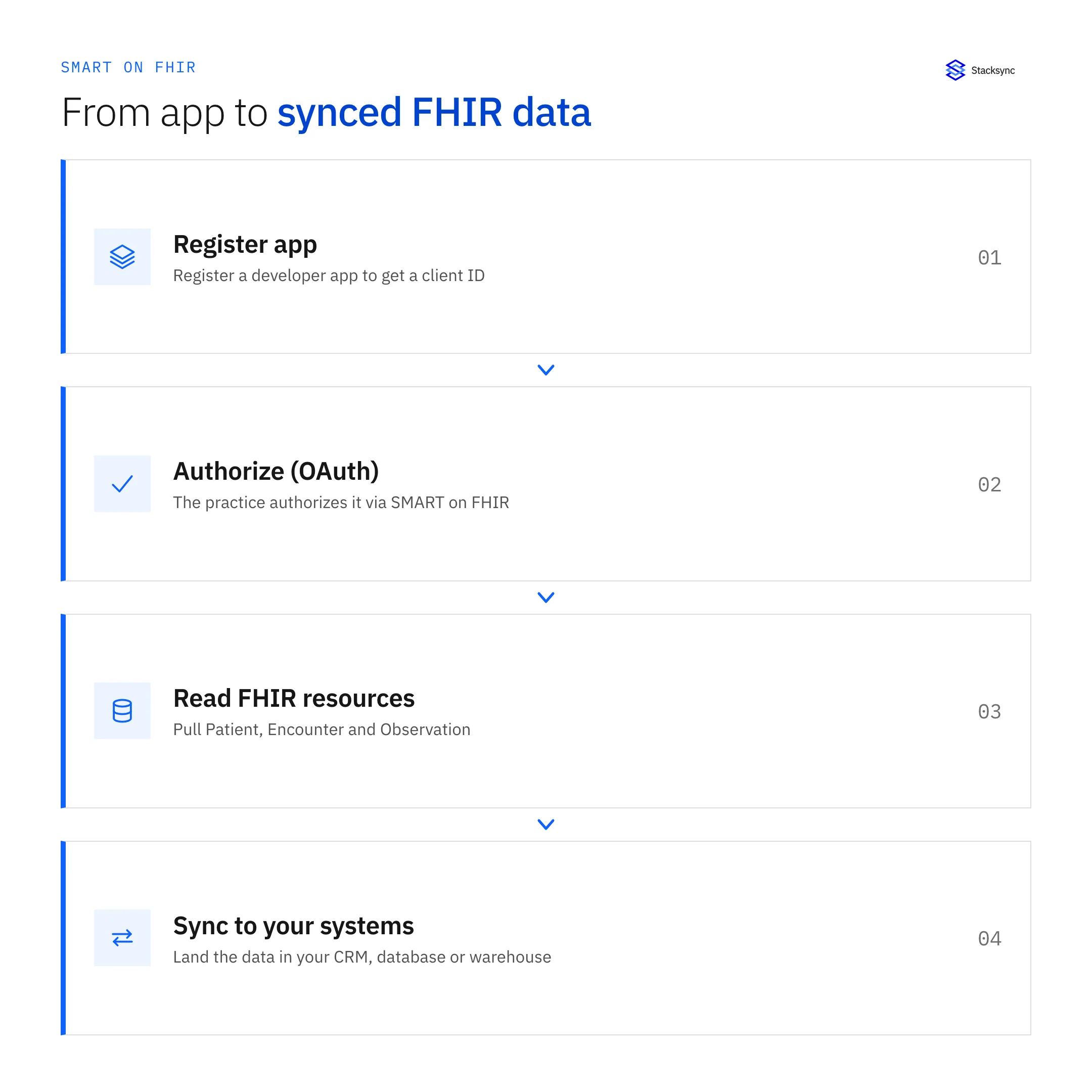

Access is gated in two layers. First you register a developer application in the eClinicalWorks developer program, which issues you a client ID (and a client secret for confidential apps) and records your redirect URIs and requested scopes. Second, a practice has to authorize your app against its own environment before you can read its data. Neither step is instant, so build authorization lead time into your project plan rather than assuming a same-day connection.

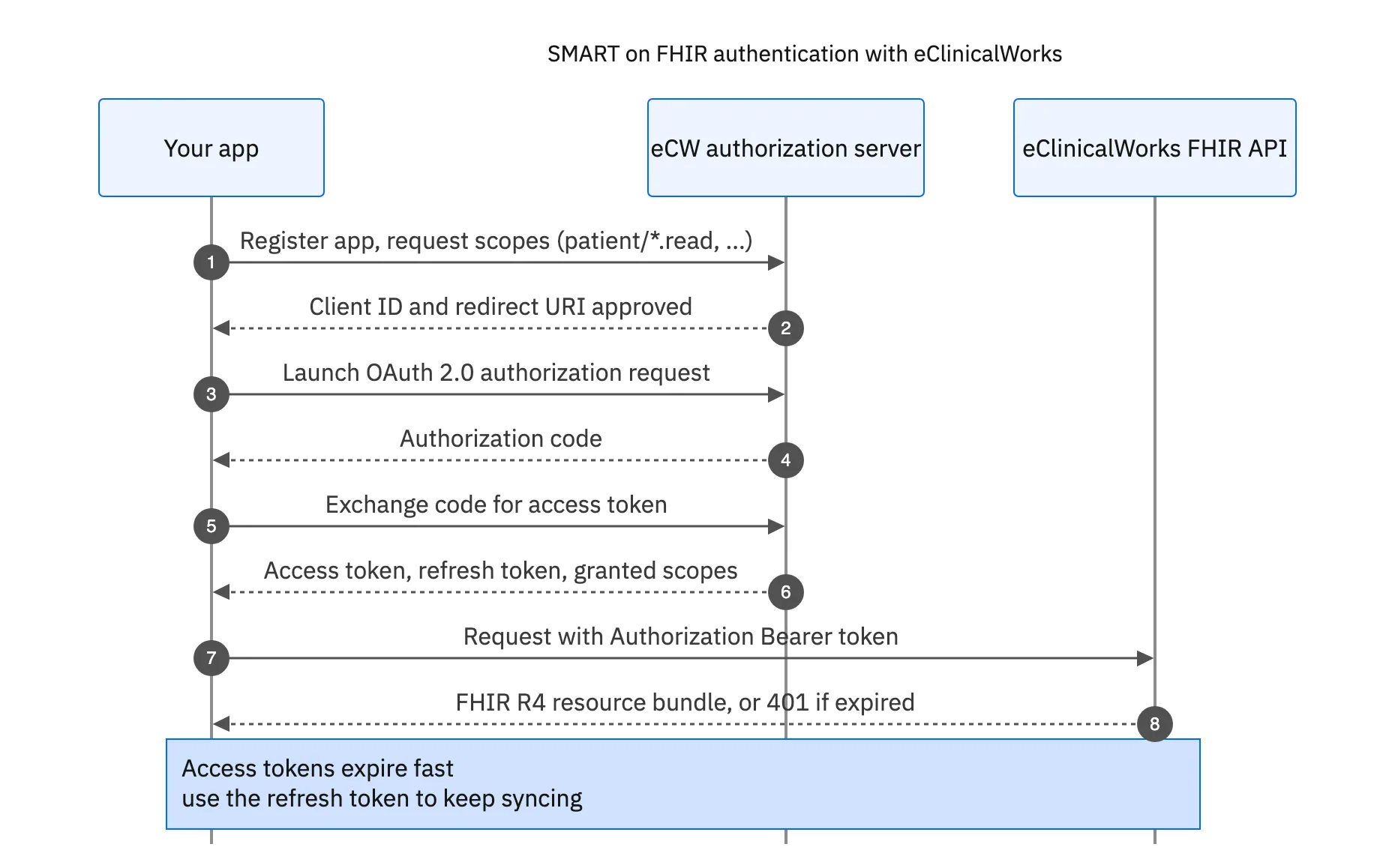

Authentication uses OAuth 2.0 under the SMART on FHIR profile. Provider-facing and system-level integrations typically use the authorization code flow (a user signs in and consents) or, where supported, the SMART backend services flow with a signed client assertion for server-to-server access. The token you receive carries the scopes that limit which resources and which patients you can touch. A minimal token exchange and resource call look like this:

# Exchange an authorization code for an access token (SMART on FHIR)
curl -X POST https://<eclinicalworks-fhir-auth-server>/token \
  -H "Content-Type: application/x-www-form-urlencoded" \
  -d "grant_type=authorization_code" \
  -d "code=$AUTH_CODE" \
  -d "redirect_uri=https://yourapp.example/callback" \
  -d "client_id=$CLIENT_ID"

# Then call a FHIR resource with the bearer token
curl https://<eclinicalworks-fhir-base>/Patient/$PATIENT_ID \
  -H "Authorization: Bearer $ACCESS_TOKEN" \
  -H "Accept: application/fhir+json"

Reading data: search, paging, and rate limits

Once authenticated, you read data with FHIR search. A request like GET /Observation?patient=123&category=laboratory returns a Bundle resource containing matching entries plus paging links. FHIR paginates with next links rather than simple offsets, so your client has to follow the Bundle.link of relation next until it runs out, carrying the opaque cursor the server hands back on each page.

Three realities shape any production reader:

• Rate limits. The API throttles requests, so a naive loop over thousands of patients will hit limits. You need backoff, retries on 429 responses, and concurrency control.
• Incremental reads. To keep a copy current without refetching everything, you filter on _lastUpdated where supported and track a high-water mark per resource type. Not every server or resource supports every search parameter, so you confirm against the capability statement.
• Bulk and write access are limited. Read access to individual patients is the well-tested path. Warehouse-scale bulk export and write-back are more constrained and depend on the practice's configuration and agreements. Do not assume you can push data back the way you can read it.

None of this is exotic, but it adds up. A resilient reader that respects limits, follows paging, tracks deltas, and recovers from partial failures is a real service to build and then keep running for every practice you connect.

Mapping FHIR resources to your CRM or warehouse schema

FHIR is nested and normalized; your CRM object or warehouse table is flat and denormalized. Bridging the two is where most of the work lives. A single Patient resource holds arrays of names, identifiers, and telecom entries that you have to pick apart and flatten into columns. A lab result sits in Observation with LOINC codes, a value quantity, units, and a reference range that your target schema probably models differently.

Common destinations and what teams do with the data:

• Sync patient and encounter data into Salesforce so care coordination and outreach teams work from current records.
• Land normalized clinical tables in PostgreSQL for operational apps and reporting.
• Feed an analytics warehouse such as BigQuery for population health, quality measures, and finance dashboards.

The mapping is not one and done. FHIR profiles change, practices enable new fields, and your own schema evolves, so the transformation layer needs versioning and tests. And if you want the CRM and the source to agree in both directions, you are now looking at two-way sync with conflict handling, which is a different and harder problem than a one-way pull.

A HIPAA-compliant managed sync with Stacksync

Stacksync connects eClinicalWorks to your CRMs, databases, and warehouses and keeps the data in sync in near real time, without you building and babysitting a FHIR pipeline. It handles the SMART on FHIR auth, paging, rate limits, and change detection, and maps FHIR resources into the fields your destination expects. Where the source and destination both support it, it runs two-way sync so a change in one system shows up in the other.

Because the data is PHI, this part matters. Stacksync is SOC 2, HIPAA, and GDPR compliant and will sign a Business Associate Agreement, so patient data stays inside a governed, audited boundary as it moves. That is the difference between shipping an integration in days and staffing a pipeline team for months.

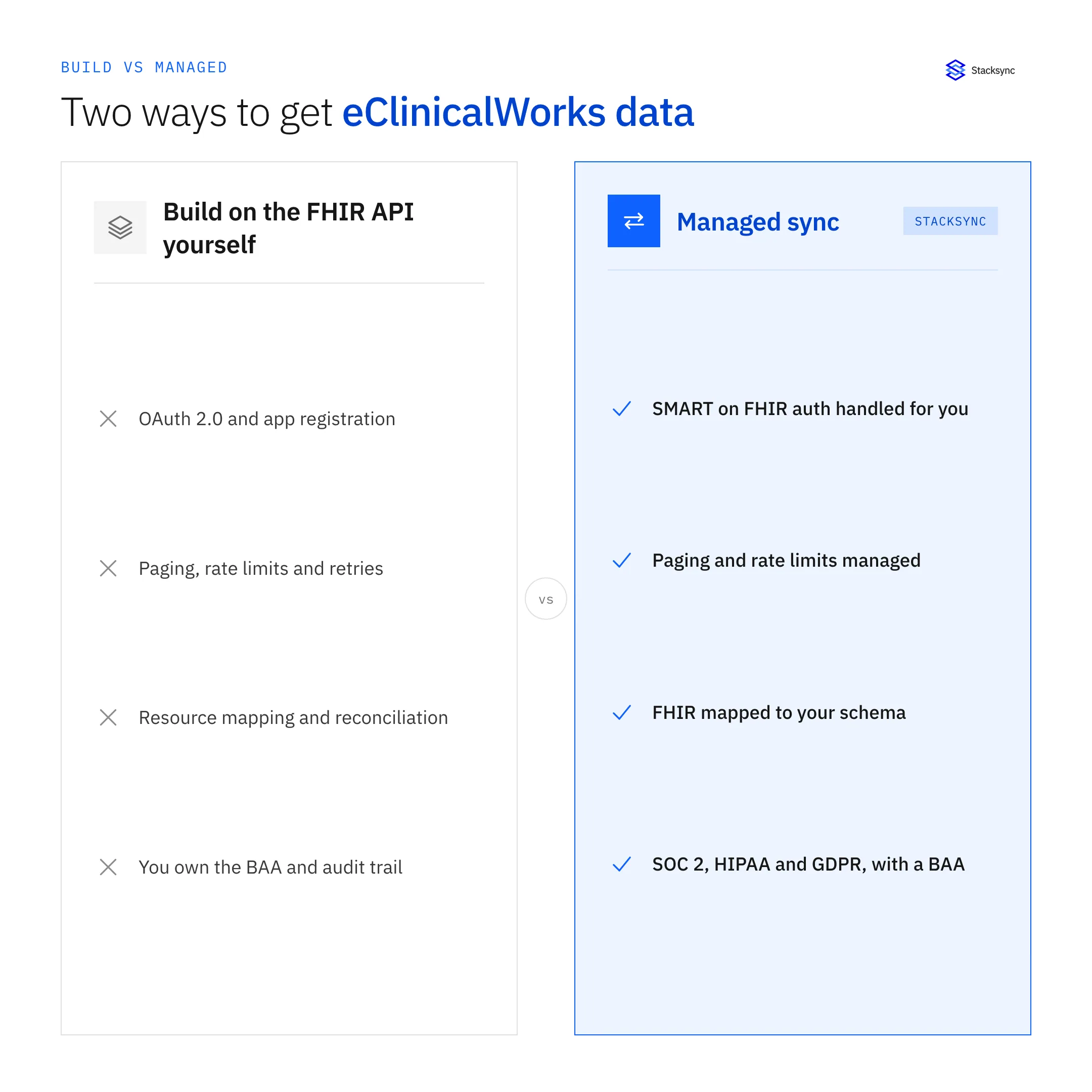

If you are weighing whether to build on the eClinicalWorks FHIR API directly or sync it through a managed platform, the deciding factors are usually time, compliance surface, and who maintains it when the API changes. Book a demo and we will map your eClinicalWorks resources to your CRM or warehouse and show the sync running against a real schema.
