The Engineering Challenges of Bi-Directional Sync: Why Two One-Way Pipelines Fail

For organizations with mission-critical data synchronization needs, investing in proper bidirectional synchronization architecture pays dividends in reliability, performance, and engineering productivity. By adopting a true bi-directional sync architecture, you can eliminate the inherent limitations of dual one-way pipelines and build a more robust, maintainable integration infrastructure.

The Engineering Challenges of Bi-Directional Sync: Why Two One-Way Pipelines Fail

Introduction

As system architects and integration engineers, we frequently encounter scenarios where data must flow bidirectionally between disparate systems. The apparent simplicity of implementing two separate one-way synchronization pipelines often tempts engineering teams facing tight deadlines or resource constraints. However, this approach introduces fundamental architectural flaws that can compromise data integrity, create technical debt, and ultimately lead to system reliability issues.

This technical analysis examines the engineering challenges of implementing bi-directional synchronization through dual one-way pipelines versus purpose-built two-way sync solutions. We'll explore the underlying architectural differences, dissect the distributed systems problems that emerge, and analyze implementation considerations from a technical perspective.

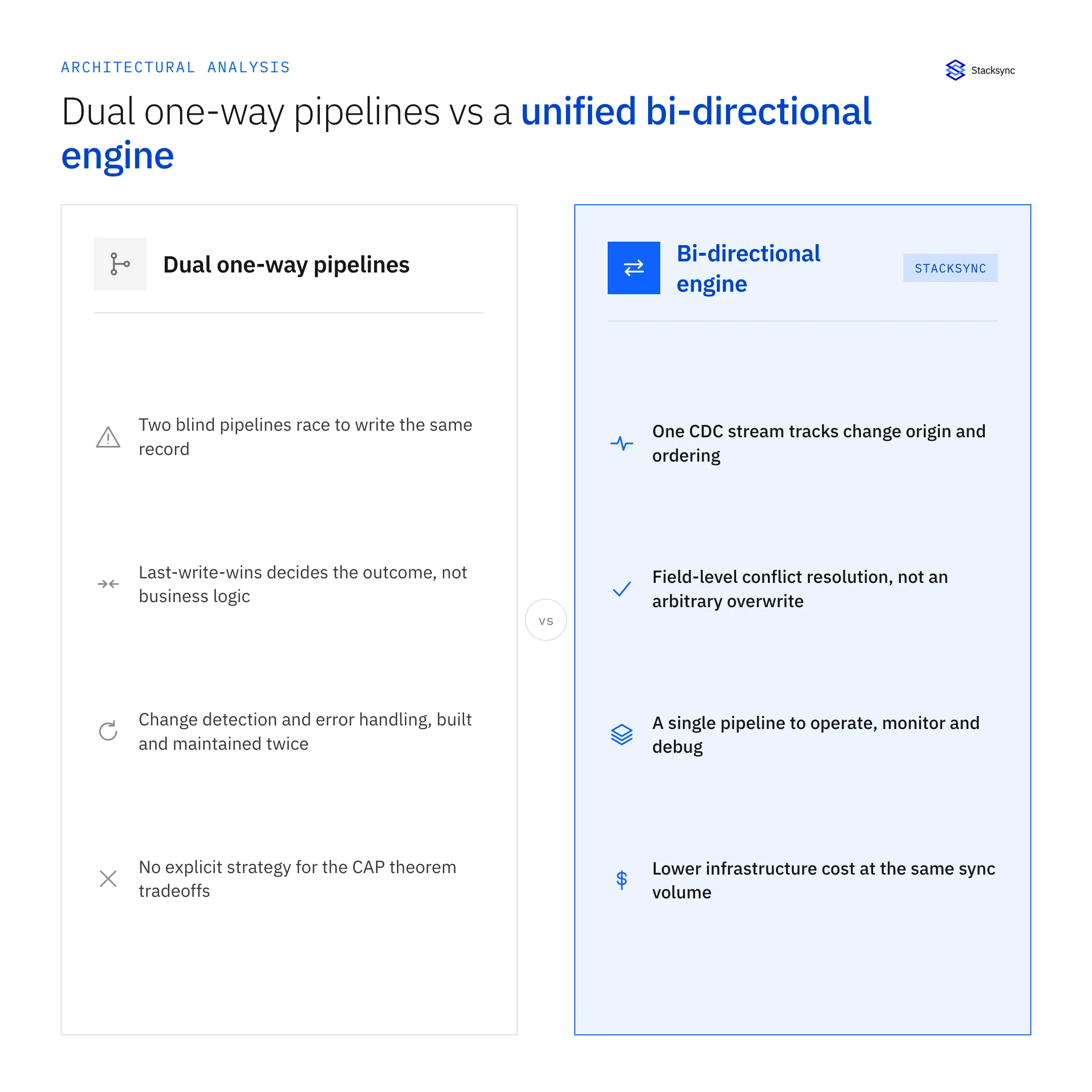

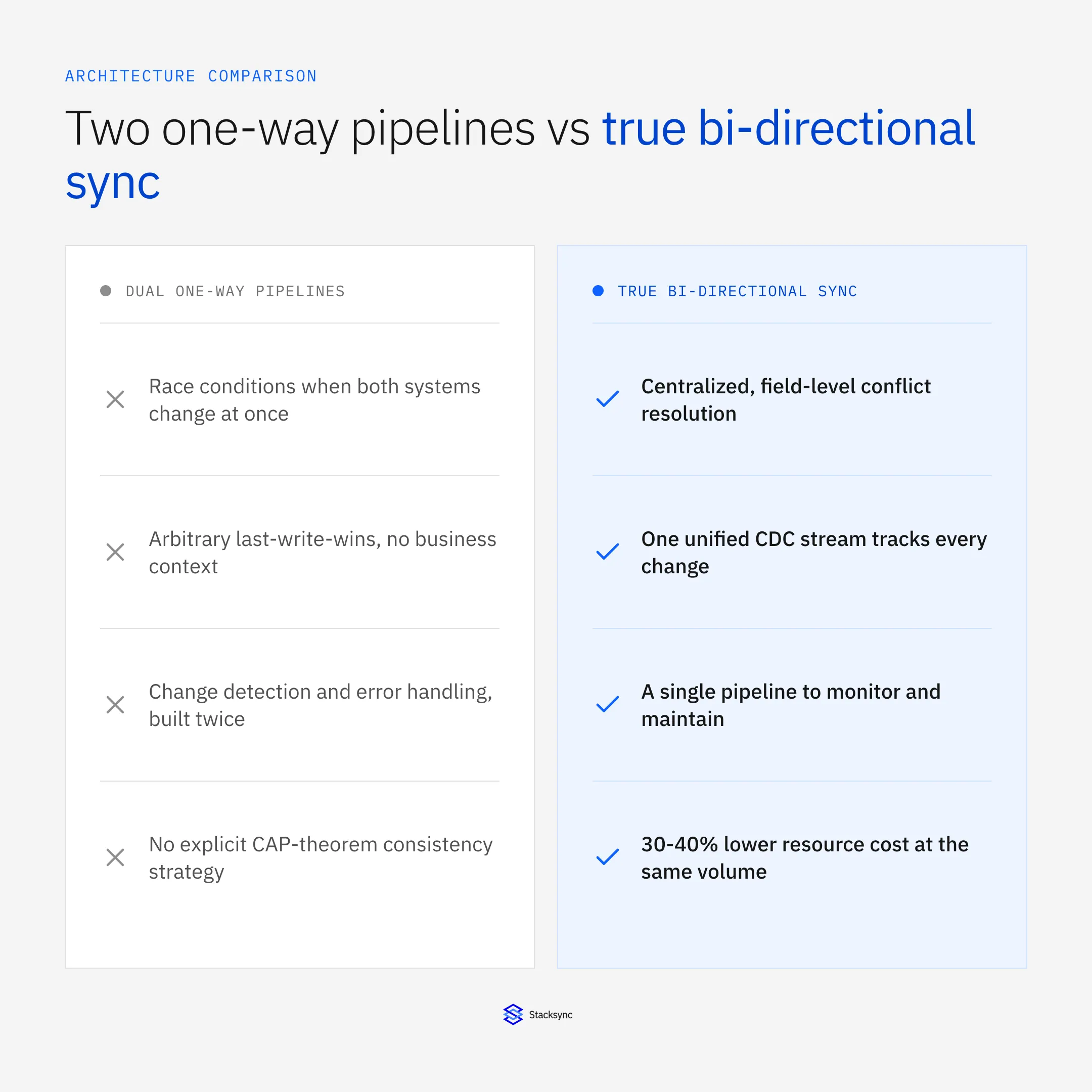

Architectural Analysis: Dual One-Way Sync vs. True Bi-Directional Sync

Distinct Architectural Patterns

From an architectural standpoint, implementing two one-way sync pipelines differs fundamentally from designing a true bi-directional sync system:

Dual One-Way Architecture:

In this model, each pipeline operates independently with:

  • Separate event detection mechanisms
  • Independent transformation logic
  • Distinct error handling
  • Isolated state management
  • No shared context between pipelines

True Bi-Directional Architecture:

This model provides:

  • Centralized change detection
  • Unified transformation rules
  • Coordinated error handling
  • Shared state tracking
  • Global transaction context

State Management Complexity

A critical difference lies in state management. Maintaining state is essential to prevent update loops and ensure consistent data:

Dual One-Way Approach Issues:

  • Each pipeline must independently track its synchronization state
  • No shared knowledge of which changes originated from which system
  • Requires complex tagging or time-based heuristics to prevent loops
  • State management logic duplicated across both pipelines

Unified Two-Way Approach:

  • Centralized state tracking for all synchronized entities
  • Global knowledge of change origin and history
  • Purpose-built mechanisms to detect and prevent circular updates
  • Single source of truth for synchronization state

The Distributed Systems Challenges

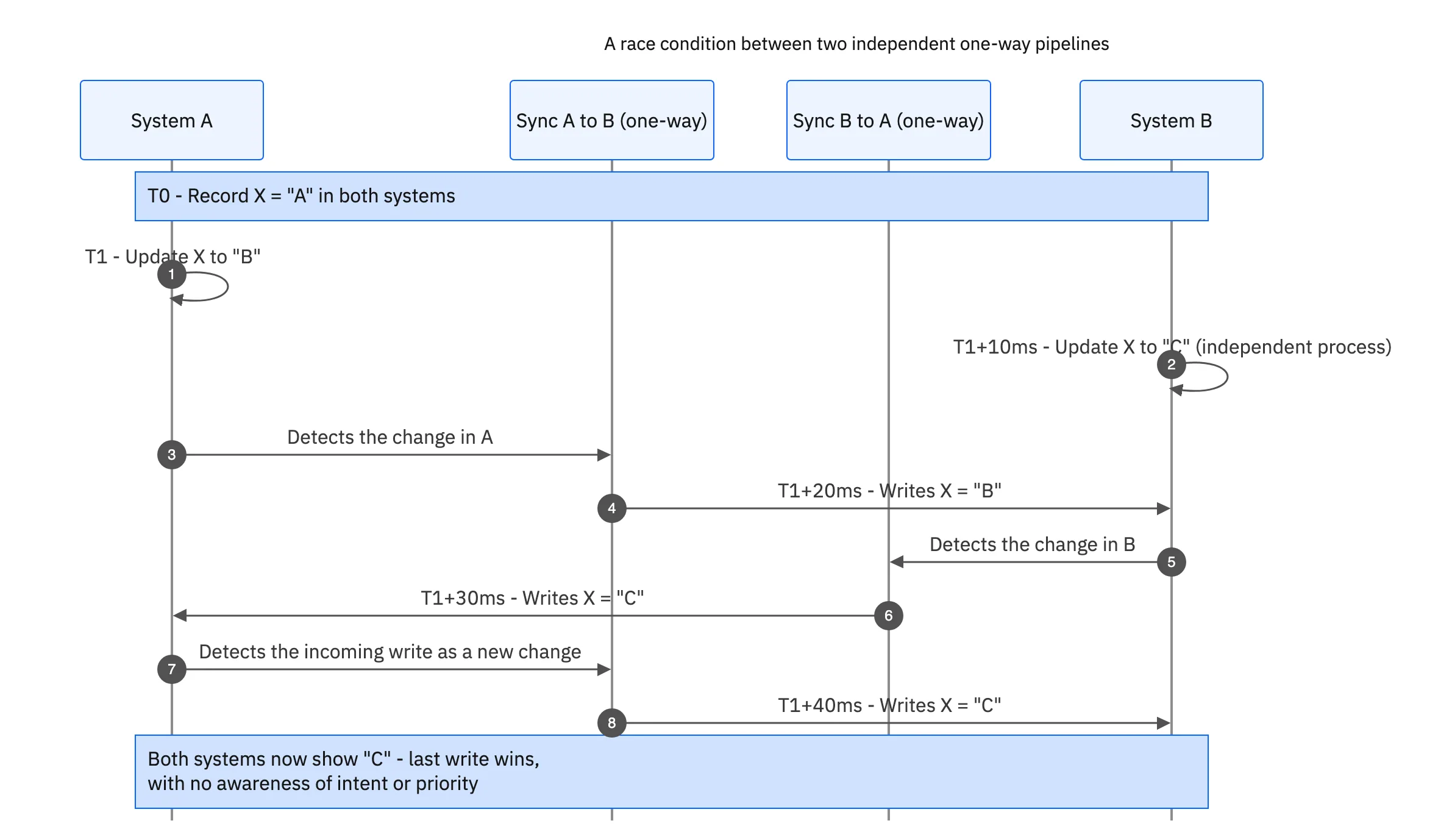

Race Conditions and Timing Problems

Dual one-way synchronization creates a classic distributed systems problem: race conditions. Consider this sequence with two independent sync processes:

T0: Record X has value "A" in both System A and System B

T1: System A updates X to "B"

T1+10ms: System B updates X to "C" (different user/process)

T1+20ms: Sync A→B runs, updating X to "B" in System B

T1+30ms: Sync B→A runs, updating X to "C" in System A

T1+40ms: Sync A→B sees change in A, updates X to "C" in System B

At this point, both systems have value "C" - but whose change was intended to prevail? The last-write-wins behavior is arbitrary, potentially overriding important business decisions with no awareness of intent or priority.

With concurrent updates at scale, this problem becomes dramatically more complex and unpredictable. Real-world systems might experience thousands of such races daily across multiple entities.

The CAP Theorem Implications

Bi-directional synchronization inherently operates within the constraints of the CAP theorem. With two systems that both accept writes, the system must choose between:

  • Consistency: Ensuring both systems immediately reflect the same data
  • Availability: Allowing both systems to continue operating even during network issues
  • Partition Tolerance: Continuing function despite communication failures

Dual one-way sync pipelines typically lack the sophistication to manage these trade-offs explicitly, often defaulting to an eventual consistency model with no guaranteed convergence properties.

True bi-directional sync platforms implement specific strategies for handling these constraints, such as:

  • Configurable conflict resolution policies
  • Explicit consistency models with clear guarantees
  • Partition-aware synchronization that tracks changes during outages

Implementation Challenges

Change Detection Limitations

Detecting changes efficiently represents another significant challenge:

Dual One-Way Limitations:

  • Each pipeline implements its own change detection logic
  • Often relies on timestamp-based polling, creating detection latency
  • May miss rapid successive changes between polling intervals
  • Doubling of API load on source systems

A typical implementation using timestamps might look like:

Pipeline 1: System A → System B

SELECT * FROM table_a WHERE last_modified > last_sync_timestamp

Pipeline 2: System B → System A

SELECT * FROM table_b WHERE last_modified > last_sync_timestamp

This approach is prone to missing changes or handling them out of order.

True Two-Way Solutions:

  • Unified Change Data Capture (CDC) strategies
  • Event-based architectures using database triggers or log tailing
  • WebSocket or streaming connections for real-time awareness
  • Optimized polling with idempotent processing guarantees

Conflict Resolution Engineering

Conflict resolution becomes a central architectural concern in bi-directional sync:

Manual Conflict Resolution in Dual One-Way Pipelines:

Simplified pseudocode showing the complexity of handling conflicts

def sync_a_to_b(record):

    if record.last_modified > get_last_sync_time('a_to_b'):

        # Check if this update is actually from the other sync

        if not is_from_sync_b_to_a(record):

            target_record = get_record_from_system_b(record.id)

            if target_record.last_modified > record.last_modified:

                # Conflict! Which one wins?

                # Often defaults to last-write-wins with no business context

                update_system_b(record)

                set_last_sync_time('a_to_b', now())

Similar complex logic needed for sync_b_to_a()

In contrast, a true bi-directional sync engine implements sophisticated conflict resolution:

Centralized Conflict Resolution Strategies:

  • Field-level conflict resolution (different rules for different fields)
  • Business rule-based resolution (priority, role-based)
  • Custom merge strategies for complex objects
  • Conflict logging and optional manual resolution workflows

Transaction Integrity and Referential Consistency

Maintaining transactional integrity across related records presents another challenge:

Dual Pipeline Weakness:

  • No coordination between pipelines for related records
  • Foreign key or dependency violations when parent-child records sync out of order
  • Each pipeline must independently handle complex relationships

True Two-Way Advantage:

  • Relationship-aware synchronization ordering
  • Transaction grouping for related entities
  • Global orchestration of complex object graphs

Performance and Scalability Considerations

Resource Utilization

From a resource utilization perspective, dual one-way sync is inherently inefficient:

  • API Consumption: Doubles the number of API calls to source systems
  • Processing Overhead: Duplicates transformation logic and state management
  • Monitoring Complexity: Requires tracking and alerting on two separate pipelines
  • Development Resources: Doubles the code maintenance and update requirements

In high-volume environments, these inefficiencies can lead to significant operational costs:

// Resource calculation example

Dual One-Way Resource Cost = (A→B API calls + B→A API calls) +

                            (A→B processing + B→A processing) +

                            (A→B storage + B→A storage)

True Two-Way Resource Cost = (Combined API calls) +

                            (Unified processing) +

                            (Centralized storage)

The unified approach typically reduces resource utilization by 30-40% for similar workloads.

Scaling Challenges

As data volumes and velocity increase, the limitations of dual one-way sync become more pronounced:

Scaling Issues with Dual Pipelines:

  • Linear scaling of API consumption with record count
  • Increased probability of race conditions at higher volumes
  • Exponential growth in monitoring complexity
  • Growing risk of update loops consuming resources

True bi-directional sync platforms implement optimizations specifically for scale:

  • Batching and compression of synchronized data
  • Intelligent change detection to minimize API calls
  • Prioritization of critical data paths during high load
  • Differential sync to transmit only changed fields

Implementation Patterns for True Two-Way Synchronization

Event-Driven Architecture

Modern two-way sync platforms typically leverage event-driven architectures:

This pattern provides:

  • Decoupling of systems with reduced direct dependencies
  • Buffering during peak loads or system outages
  • Replay capability for recovery scenarios
  • Event sourcing for advanced state reconciliation

Change Data Capture (CDC) Implementation

CDC approaches provide non-invasive, reliable change detection:

Log-Based CDC:

  • Reads database transaction logs directly
  • Minimal performance impact on source systems
  • Captures all changes regardless of application logic
  • Works with legacy systems without modification

Trigger-Based CDC:

  • Database triggers fire on insert/update/delete operations
  • Records changes to specialized tracking tables
  • Can capture additional context about changes
  • More intrusive but sometimes necessary for certain databases

Conflict Resolution Strategies

Engineering robust conflict resolution requires implementing specific strategies:

  1. Last-Write-Wins (LWW)
    • Simplest strategy, using timestamps to determine "winner"
    • Limited business context awareness
    • Potential for data loss but low implementation complexity
  2. Source-of-Truth Priority
    • Designates one system as authoritative for specific entities/fields
    • Changes from authoritative system always win
    • Provides business context but requires clear domain rules
  3. Custom Resolution Logic
    • Field-level merge policies based on business rules
    • Can incorporate entity-specific logic (e.g., numeric fields use max value)
    • Highest implementation complexity but most flexible

Case Study: Migrating from Dual Pipelines to True Two-Way Sync

Initial State: Integration Challenges

A financial services firm implemented two one-way pipelines between Salesforce and their PostgreSQL operational database:

  • Pipeline 1: Salesforce → PostgreSQL (hourly batch)
  • Pipeline 2: PostgreSQL → Salesforce (hourly batch, offset by 30 minutes)

They encountered several critical issues:

  • Data conflicts occurred when the same record was updated in both systems between sync runs
  • Engineers spent ~40% of their time troubleshooting sync failures
  • Data inconsistencies led to incorrect financial calculations
  • Scaling issues emerged as their customer base grew

Technical Solution: True Bi-Directional Architecture

The engineering team implemented a true two-way sync solution with:

  • Unified CDC-based change detection for both systems
  • Event-driven architecture using Kafka for reliable message delivery
  • Centralized conflict resolution with field-level policies
  • Transactional integrity for related record updates
  • Comprehensive monitoring with advanced alerting

Results: Engineering Metrics

The migration yielded measurable improvements:

  • Latency: Reduced sync delay from 60 minutes to <5 seconds
  • Reliability: Sync failure rate dropped from 4.7% to 0.2%
  • Resource Utilization: API consumption decreased by 35%
  • Engineering Time: Maintenance overhead reduced from 40% to 8%
  • Scalability: Successfully handled 3x growth in data volume without performance degradation

Conclusion: Engineering Considerations for Implementation

Implementing true bi-directional synchronization requires careful architectural planning:

  1. Choose an Appropriate Technical Approach
    • Event-driven architectures provide the most robust foundation
    • Consider CDC technologies appropriate for your systems
    • Evaluate the trade-offs of various conflict resolution strategies
  2. Plan for Failure Scenarios
    • Design explicit recovery processes for system outages
    • Implement comprehensive monitoring and alerting
    • Consider data backup and rollback capabilities
  3. Address Performance Requirements
    • Define acceptable latency thresholds for synchronization
    • Plan capacity based on peak data change volumes
    • Implement appropriate throttling and backpressure mechanisms
  4. Consider Build vs. Buy Decision
    • Building true two-way sync requires significant engineering expertise
    • Evaluate existing platforms against your specific requirements
    • Factor in ongoing maintenance costs when calculating ROI

For organizations with mission-critical data synchronization needs, investing in proper bidirectional synchronization architecture pays dividends in reliability, performance, and engineering productivity.

Next Steps for Engineering Teams

If you're considering implementing or improving bi-directional synchronization in your architecture:

  1. Audit your current integration approach for race conditions and conflict handling
  2. Document your specific requirements for consistency, latency, and throughput
  3. Develop a proof-of-concept with a true two-way sync approach
  4. Measure performance and reliability improvements against your baseline
  5. Create a migration plan that minimizes disruption to production systems

By adopting a true bi-directional sync architecture, you can eliminate the inherent limitations of dual one-way pipelines and build a more robust, maintainable integration infrastructure.
