Synchronizing data between HubSpot and Stripe helps organizations keep customer and revenue information consistent across their business systems. Two way sync refers to the process where updates in either HubSpot or Stripe are automatically reflected in the other system, ensuring data accuracy and reducing manual work.
This article examines the technical architecture behind connecting HubSpot and Stripe, focusing on how real-time and batch data synchronization works. It also reviews the business impact of implementing two way sync, including reporting, automation, and compliance considerations.
The native HubSpot Stripe integration operates in select markets, with initial availability focused on the United States before expanding to other regions. Coverage now includes most North American and European markets, with limited availability in Asia-Pacific regions.
Account Prerequisites:
Certain advanced features like multi-currency processing or subscription billing may require higher-tier accounts in both systems.
The HubSpot Stripe connection follows a four-step authentication and verification process.
Navigate to the Commerce section in HubSpot settings and select the Payments option. Click "Set up payments" to begin the configuration process. This action opens the payment processor selection interface.
The system prompts for Stripe login credentials during the OAuth flow. OAuth is a secure authentication method that allows HubSpot to access Stripe data without storing passwords. Enter your Stripe account email and password, then authorize HubSpot's access permissions for customer data, payment information, and webhook endpoints.
Both platforms establish webhook endpoints automatically during setup. Webhooks are automated messages sent between systems when specific events occur. HubSpot creates a unique endpoint URL that Stripe uses to send payment notifications, while Stripe provides webhook URLs for receiving updates from HubSpot.
Process a small test payment through HubSpot to verify the connection works correctly. This test confirms that payment data flows from HubSpot to Stripe and that transaction details sync back to update deal records and contact information.
The HubSpot Stripe integration maps specific data objects between platforms based on their business function and data structure.
Core Object Relationships:
Stripe customer records contain email addresses, names, billing addresses, and payment methods. When synchronized, this information populates corresponding fields in HubSpot contact records. Updates to customer information in either system reflect in the other platform during the next sync cycle.
Stripe invoices include payment amounts, due dates, status updates, and line item details. This data maps to HubSpot deal records, updating deal values, close dates, and pipeline stages. Paid invoices typically move deals to "Closed Won" status, while failed payments may trigger "Payment Failed" stages.
Stripe subscriptions represent recurring billing agreements with specific intervals, amounts, and renewal dates. Each subscription becomes a line item within the corresponding HubSpot deal, displaying billing frequency, next payment date, and subscription status.

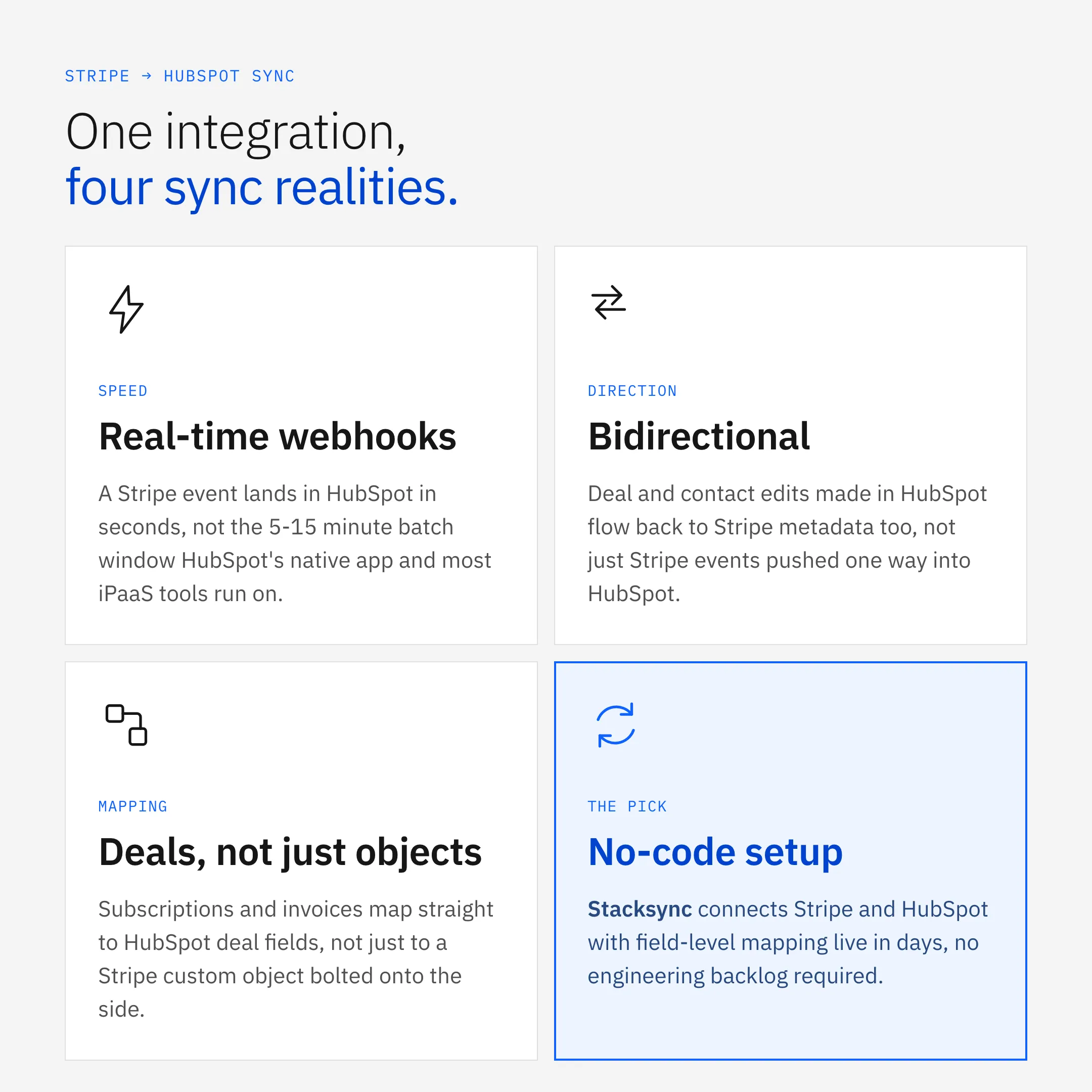

Data synchronization between HubSpot and Stripe occurs through two primary methods: real-time webhooks and scheduled batch processing.

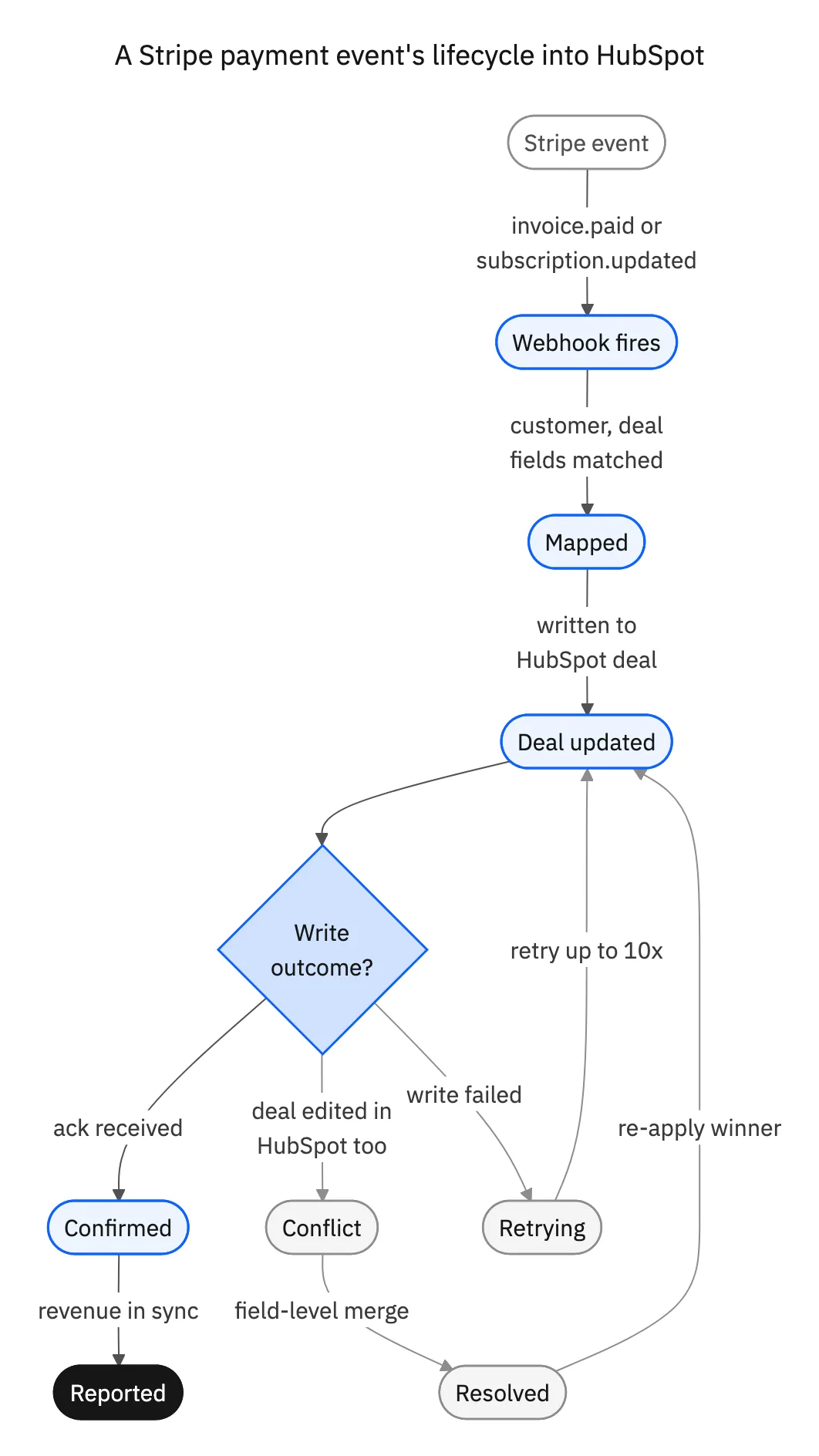

Webhooks provide immediate data synchronization when events occur in either platform. When a payment is processed in Stripe, a webhook instantly notifies HubSpot to update the related deal record. Similarly, when contact information changes in HubSpot, webhooks can trigger updates to the corresponding Stripe customer record.
Real-time sync typically completes within seconds of the triggering event, making it suitable for time-sensitive business processes like payment confirmations or deal stage updates.
Batch synchronization checks for updates at regular intervals, typically every 5-15 minutes. This method uses API calls to compare data between platforms and identify changes that require synchronization.
API rate limits restrict how many requests each platform accepts per minute or hour. When these limits are reached, additional sync requests wait in queue, potentially delaying updates. Stripe allows 100 requests per second for most operations, while HubSpot's limits vary by subscription tier.
The integration supports multiple currencies and payment methods through Stripe's processing capabilities.
Organizations can accept payments in various currencies while maintaining consistent reporting in HubSpot. The system records transactions in their original currency and applies exchange rates for conversion when necessary. Exchange rates update automatically based on current market values provided by Stripe's financial data sources.
Default currency settings determine how amounts display in HubSpot reports and deal records. Currency conversion rates are stored with each transaction for accurate historical reporting.
Stripe enables multiple payment options that integrate with HubSpot checkout processes:
Payment method selection affects processing fees, settlement timing, and available features like recurring billing or refund processing.
The integration enables automated responses to payment events and subscription changes through HubSpot's workflow tools.
Payment status changes trigger automatic deal stage updates. Successful payments move deals to "Closed Won" stages, while failed payments can trigger "Payment Issue" or "Follow-up Required" stages. Refunded payments may reopen deals or create new records for tracking the refund process.
These automations reduce manual data entry and ensure deal records accurately reflect current payment status across the sales team.
Recurring billing events trigger specific workflows for subscription management. Upcoming renewals generate tasks for account managers to contact customers. Failed subscription payments initiate dunning sequences with automated email reminders and escalation procedures.
Subscription cancellations update deal records and can trigger retention workflows or customer feedback surveys to understand churn reasons.
Synchronized payment data enhances HubSpot's reporting capabilities for revenue tracking and business intelligence.
HubSpot calculates key subscription metrics using Stripe payment data:
These calculations update automatically as payment data synchronizes from Stripe, providing real-time visibility into business performance.
Actual payment data from Stripe improves the accuracy of HubSpot's sales forecasting models. Historical payment patterns, seasonal trends, and customer behavior data help predict future revenue more precisely than estimates based solely on deal pipeline information.
The integration maintains enterprise-level security through multiple layers of protection and compliance certifications.
OAuth 2.0 protocols secure the connection between HubSpot and Stripe without exposing login credentials. Access tokens have limited lifespans and rotate automatically to minimize security risks. Both platforms log all API access and monitor for unusual activity patterns.
Administrative controls allow organizations to restrict which users can modify integration settings or access sensitive payment information within HubSpot.
Both platforms maintain compliance with major data protection and financial regulations:
Regular compliance audits and security assessments ensure ongoing adherence to these standards as regulations evolve.
Organizations with complex data requirements can extend the basic HubSpot Stripe integration through additional technical approaches.
Payment events from Stripe can stream directly to data warehouses like Snowflake, BigQuery, or Redshift for advanced analytics. This approach captures detailed transaction data, customer behavior patterns, and payment method preferences that may not sync to HubSpot by default.
Webhook configurations send real-time payment events to data pipeline tools, which transform and load the information into warehouse tables for analysis and reporting.
Reverse ETL processes push enriched customer data from warehouses back to operational systems. For example, customer segmentation models built in the data warehouse can update HubSpot contact properties or Stripe customer metadata to trigger personalized marketing campaigns or pricing adjustments.
This bidirectional data flow creates a comprehensive view of customer relationships across all business systems.
Several alternatives exist for organizations that require different features or capabilities than the native integration provides.
iPaaS tools like Zapier, Workato, and Microsoft Power Automate offer no-code alternatives for connecting HubSpot and Stripe. These platforms provide pre-built connectors with customizable workflow logic for handling specific business requirements or data transformations not supported by the native integration.
iPaaS solutions typically process data in batches with 5-15 minute delays, making them suitable for non-critical synchronization needs.

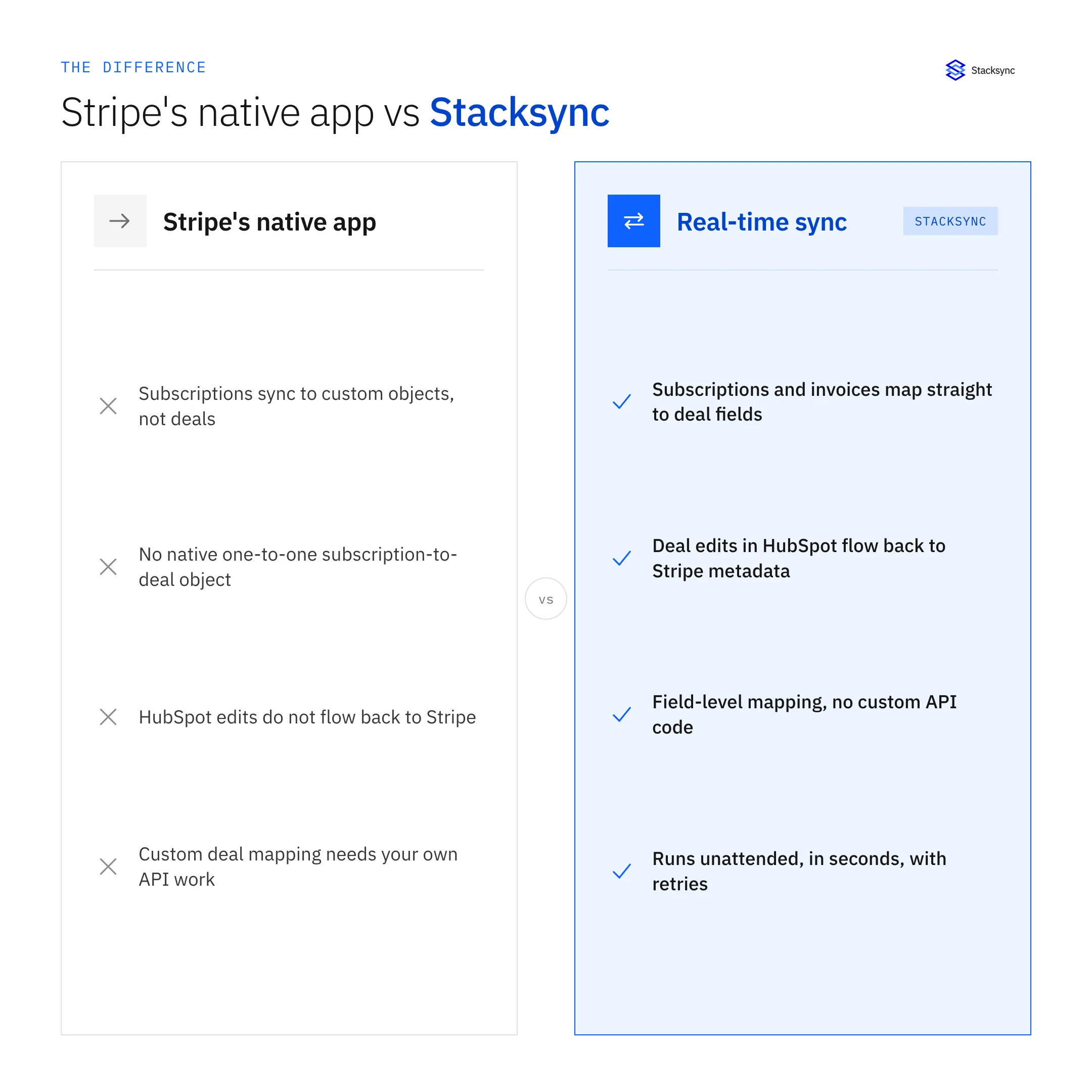

Dedicated data synchronization platforms like Stacksync provide real-time, bidirectional sync capabilities with advanced field mapping and transformation options. These solutions connect directly to APIs and databases, supporting high-volume data processing with minimal latency.
Specialized platforms often include features like conflict resolution, data validation, and custom business logic that extend beyond basic field mapping between systems.
Successful HubSpot Stripe integration requires careful planning and ongoing optimization to maximize business value.
Organizations typically begin by mapping existing data flows and identifying critical business processes that depend on timely payment information. This analysis helps determine whether real-time or batch synchronization better serves operational needs.
Regular monitoring of sync performance, error rates, and data quality ensures the integration continues meeting business requirements as transaction volumes and complexity increase. For organizations requiring advanced integration architectures or custom synchronization logic, consulting with integration specialists can help design optimal solutions.
To explore advanced integration options or discuss specific technical requirements, schedule a consultation with a Stacksync cloud architect at cal.com/rubenburdin/stacksync-demo.
The native integration requires a HubSpot Commerce Hub subscription, which varies in price by region and currency. Additional costs may apply for currency conversion, international payment processing, or premium Stripe features depending on the specific market and account configuration.
HubSpot supports only one primary Stripe account connection per portal through the native integration. Organizations with multiple Stripe accounts require third-party integration platforms or custom API development to synchronize data from additional accounts.
The integration synchronizes only new transactions and updates that occur after the initial setup. Historical payment data, customer records, and subscription information from before the connection date do not automatically transfer to HubSpot and require manual import or API-based migration.
HubSpot includes duplicate management tools that can identify and merge duplicate contact or deal records created during sync processes. Temporarily disconnecting the integration prevents additional duplicates while cleanup operations are performed using HubSpot's deduplication features.
